| Shenzhen Absen Industry Co., ltd | ||||||
| About this company : Single/dual/Full colour indoor/outdoor display screen | ||||||
| Contact : Keven Yeung , Sales Manager | ||||||
| Headquarters : No.2 buiding, Jinrongda Science&Tec, Shenzhen, Guangdong, 518129, China | ||||||
| Phone : 86-755-89747399-818, 86-13714049760, Fax : 86-755-89747599 | ||||||
| Website : Log on to trade instantly , Email : Log on to trade instantly | ||||||

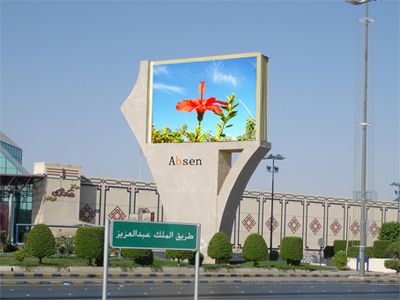

 | outdoor full colour LED display Absen-ph16 Shenzhen Absen Industrial Co., Ltd, as the private hi-tech science & technology enterprise, is professionally engaged in researching, developing, and manufacturing both outdoor and indoor full color LED display screen, which is also one of the largest LED display screen manufacturing manufacturer centers in China. | |||||
| > Add to cart | ||||||

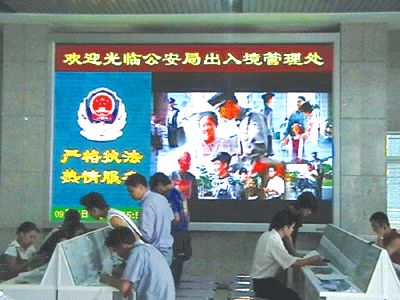

 | Full Colour Intdoor LED Display Screen Absen-PH7.62 （1）Construction sketch map Construction description：Each pixel contain 1red1puregreen1pureblue total 3pcs LED （2）Pixel parameter No. Item Parameter 1. Pixel size 4．5 2. Pixel pitch 7.62mm 3. Pixel configuration 1R1PG1PB 4. Pixel brightness 500mcd 20mA static （3）Tube chip parameter No. Item Wavelength Brightness Original place 1. Red tube chip 625-630nm 100-120mcd Taiwan 2. Pure green tube chip 520-525nm 400-500mcd Taiwan 3． Pure blue tube chip 465-470nm 80-100mcd Taiwan （4）Screen body technical parameter 1 Screen area 1.464 x 1.22m = 1.79m2 Screen with cabinet 1.534m (L) x 1.29m(H) x 0.12m(T) 2 Screen body resolution(pixels) Unit box pixels: 64 x 64, Unit box size: 488 x 488mmTotal unit boxes : Total pixels: 192(L)x160(W)=30720 3 Pixel density 17200 s/ M2 4 Display brightness > 1500cd/ M2 5 Drive mode 1/8 scan, constant current drive 6 View angle 150 degrees（left and right view angle）elevation angle 60 degrees, down angle 60 degrees 7 View distance 5—50 meters 8 Grey scale Red、green、blue each 256 grade grey 9 Display colors 16777216 kinds 10 Exchange frame speed ≥60(frames)/second 11 Control mode To be synchronized with computer monitor 12 Display mode 1024×768 or 800×600 13 Screen lifespan >100000 hours 14 Screen MTBF 10000 hours 15 Blind spot rate ≤0.0005 16 Operating voltage AC220V±15% 47～64HZ 17 Screen power consumption 725W/ M2 18 Screen body total weight Less than 70KG/ M2 19 Control distance Less than 200 meters（without relay）（ super 5 line）（optical fiber over 3000 meters） 20 System working environment temperature —20℃～60℃ 21 System working environment humidity 10%—95%RH | |||||
| > Add to cart | ||||||
 | Full Colour Outdoor LED Display Screen Absen-PH20 (1). Structure description Each pixel consists of 4 LEDs, which are 2 red, 1 pure green, and 1 pure blue ones. Pixel pitch, 20mm; Resolution, 2500 pixels/M2, and it can be up to 10000 pixels/M2, (2) Technical analysis Nontent Item 1Color analysis,To get best white balance, color ratio is designed to be R: G: B/3: 6: 1. (3) Pixel data No. Item Parameter 1 Pixel specification 2 Pixel pitch 20 mm 3 Pixel composition 2 red, 1 green and 1 blue LEDs (4) LED Data No. Item Wavelength Brightness Model 1 Red tube core 625±5nm 450mcd A2 2 Pure green tube core 525±5nm 1500mcd A2 3 Pure blue tube core 465±5nm 450mcd A2 (5) Screen parameters 1 Screen area m(w) x m(h) = m2 2 Whole screen resolution Real pixel: s(w)× s(h) Virtual pixel: s(w)× s(h) 3 Screen total. Pixels Real pixel : virtual pixel : 4 Pixels per unit box 64×48 pixels, unit box size:1280 x 960mm 5 Brightness >5500cd/M2 6 Brightness adjustment Manual, 256 level; Auto, 8 levels 7 Scanning method Static 8 Drive methods Constant current drive 9 View angle 110 degrees, left/right view angle 10 Best watching distance 20-150 m 11 Grey scale 84 levels 12 Display colors 16777216 13 Frame rate > 60 frames/sec 14 Refresh rate 360HZ(no flickers while camcorder recording) 15 Control method Synchronized with computer monitor 16 Data transfer method: Parallel RS 422 17 Lifetime > 100,000 hours 18 Defects rate ≤0.0001 19 Operating voltage AC220V±15% 47～64HZ 20 Screen power consumption Max: 1100w/M2; Average: 550w/M2 21 Color temperature 6500K±500 22 Screen weight < 70KG/ M2 (not including external frame) 23 Control distance. 120 m (no repeating); Optical fiber transmission: 500m- 10km 24 MTBF > 5000 hours 25 Operating ambient temperature —20℃～+60℃ 26 Operating ambient humidity 10%—95%RH 27 Systems operating platforms WINDOWS(WIN95、WIN98、WIN2000), with a friendly UI, and interfaces for secondary development。 | |||||
| > Add to cart | ||||||
 | Full Colour Outdoor LED Display Screen Absen-PH16 （1）Construction description Each pixel contain 2 red 1 pure green 1 pure blue total 4 pcs LEDPitch 16mm , resolution 3906 s/㎡ , could be analyzed up to 15624 s/㎡ （2）Professional analysis No. Professional analysis content Analysis item 1 Color matching analysis R：G：B/3：6：1。In order to make the color matching reach the best white balance effect，the color matching rate of different color brightness is R：G：B/3：6：1 （3）Pixel parameter No. Item Parameter 1 Pixel size 2 Pixel pitch 16mm 3 Pixel configuration 2R1PG1PB （4）Tube chip parameter No. Item Wavelength Brightness Model No. 1 Red tube chip 625±5nm 450 mcd A2 2 Pure green tube chip 525±5nm 1500 mcd A2 3 Pure blue tube chip 465±5nm 450 mcd A2 （5）Screen body technical parameter 1 Screen body area m(W) x m(H) =m2 2 Include frame area Depend on site environment 3 Whole screen pixels Real pixels: (W) X (H) Virtual pixels: (W) X (H) 4 Pixel total amount Real pixels:, Virtual Pixels: 5 Unit box pixels 64 s×48 s, unit box size:1024 x 768mm 6 Display brightness >8000cd/ M2 7 Brightness adjustment 256 grade automatic,8 grade manual 8 Scan mode Static 9 Drive mode Constant current drive 10 View angle 110 degrees（left and right view angle） 11 View distance 20—150 meters 12 Grey scale 84 grade 13 Display colors 16777216 kinds 14 Exchange frame speed >60 frames/second 15 Refresh frame frequency 360HZ（Guarantee that the picture will not tingle when the pickup camera is kinescoping） 16 Control mode To be synchronize with computer monitor 17 Data transmission Parallel RS422 mode 18 Screen lifespan >100000 hours 19 Blind spot rate ≤0.0001 20 Operating voltage AC220V±15% 47～64HZ 21 Screen body power consumption Max：1300w/M2，Average：650w/M2 22 Color temperature 6500K±500 23 Screen body weight Less than 75KG/ M2（do not include outer frame） 24 Control distance 120 meters（without relay）（optical fiber transmission 500M-3KM） 25 Continuous working time 48 hours 26 MTBF >5000 hours 27 System working environment temperature —20℃～+60℃ 28 System working environment humidity 10%—95%RH 29 System operating platform WINDOWS（WIN95、WIN98、WIN2000）friendly interface，leave connecting port which is convenient for the second time development 30 Connector America AMP | |||||
| > Add to cart | ||||||
