| U Rack Enterprise Co. LTD. | ||||||
| About this company : U'Rack is built up by a group of expert engineers, designers, and marketing people who are involved in the industrial rack-mount / storage chassis field over 20 years. At U Rack, You can find a complete line of Turnkey rackmount solutions, which offer excellent resolutions of dissipation and best flexibility to meet customers' need. We are the experts in OEM/ODM design, and use metal fabrication that includes plastic, steel, stainless, aluminum, and other materials to create unique image for customers. The products of U Rack allow for easy deployment in any multi-sever environment, optimizing limited computing space and maximizing benefit. Except the professional teams for mechanical and design, U'Rack has fabrication and machine shop facilities with laser cutting, C machines, milling and welding capabilities, and serious quality control to supply customer excellent finished products. At U'Rack, the world wide expansion of product and services will continue to be our focus. By bringing global production capability to regional needs, our dedication to think globally and act locally has continued to fuel our success in the global IT hardware market. | ||||||
| Contact : Lily Chen, Manager | ||||||
| Headquarters : 3F.-5, No.6, Ln. 609, Sec. 5, Chong, New Taipei City, 24159, Taiwan, Republic of China | ||||||
| Phone : 886-2-22678691, Fax : 886-2-22678692 | ||||||
| Website : Log on to trade instantly , Email : Log on to trade instantly | ||||||

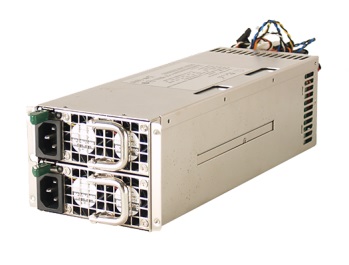

.jpg) | Power Supply UR-2700 UR-2700 Description: Switching Power Supply 700W+700W MAX.700W Input AC
100-240V~12A-6A 47-63Hz Dc Output +3.3V
+5V +12V -5V -12V +5VSB Max.Output 24A
24A 56A 0.5A 0.8A 3A Comb. Output +3.3V & +5V COMEBINED LOAD 180W | |||||
| > Add to cart | ||||||

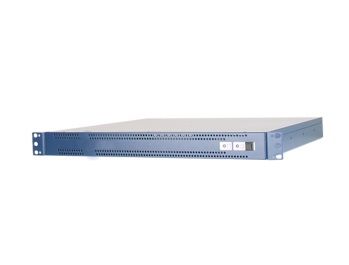

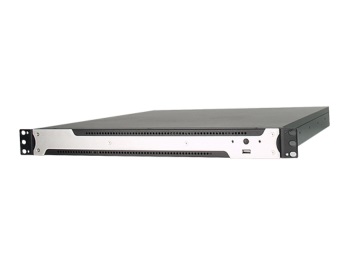

.jpg) | 1U Rackmount Chassis - U1100N4000 U1100N4000 Features: Unique Outlook Design Reliable Safety Device Super System Expansibility Easy Assembly & Service Effective cooling design to tackle thermal
issues
Description: Model NO. U1100N4000 Standard EIA-RS310D Dimension 481mm
x 420mm x 1U (W x D x H) (18.9” x
16.5” x 1.7”) Material SGCC
/ 1.0mm thickness M/B MINI ITX(6.7" X6.7") Drive bays 3.5”
HDD x 4 Coolings 4
x 4cm Indicators Power,
HDD LED Controls Power
on/off Slots 1 (PCI or PCI-E) Power Supply 1U Flex PSU | |||||
| > Add to cart | ||||||

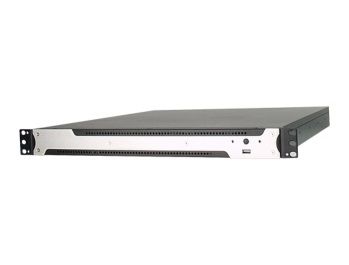

.jpg) | 1U Rackmount Chassis - U1200N4000 U1200N4000 Description: Model NO. U1200N4000 Standard EIA-RS310D Dimension 481mm x 494mm x 1U (W x D x H) (18.9” x 19.5” x 1.7”) Material SGCC
/ 1.0mm thickness, Aluminum front plate M/B MICRO ATX (9.6” X 9.6”) Drive bays 3.5”
HDD x4 Coolings 3x
4cm Indicators Power,
HDD LED Controls Power
on/off, USB2.0/3.0(OPT) port x 2 Slots 1 (PCI or PCI-E) Power Supply 1U Flex PSU | |||||
| > Add to cart | ||||||

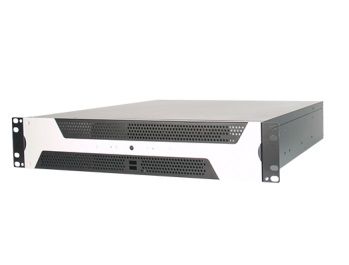

.jpg) | 2U Rackmount Chassis - U200012000 U200012000 Description: Model NO. U200012000 Standard EIA-RS310D Dimension 481mm
x 507mm x 2U (W x D x H) (18.9” x
19.96” x 3.48”) Material SGCC
/ 1.2mm thickness, Aluminum front plate M/B ATX ( 10” X 12”) Drive bays 3.5"
HDD x9 Coolings 3
x 8cm Indicators Power,
HDD LED Controls Power
on/off, USB port x 2 Slots 7 (low-profile PCI or PCI-E) Power Supply PSII Power supply | |||||
| > Add to cart | ||||||

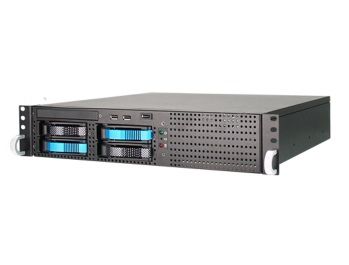

.jpg) | 2U Rackmount Chassis - U2005H3000 U2005H3000 Description: Model NO. U2005H3000 Standard EIA-RS310D Dimension 481mm
x 400mm x 2U (W x D x H) (18.9” x
15.74” x 3.48”) Material SGCC
/ 1.0mm thickness M/B MINI
ITX ( 6.7” X 6.7”) Drive bays SLIM
ODD X1, 3.5" Sata/SAS Hotswap x 4,
3.5"HDD x 3 Coolings 1x
8cm ball bearing (middle) on windpipe design Indicators Power,
HDD LED Controls Power
on/off, system reset, USB port x 2 Slots 1
(PCI or PCI-E) Power Supply PSII Power supply | |||||
| > Add to cart | ||||||

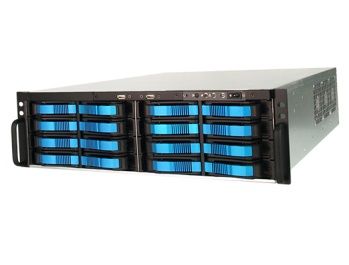

.jpg) | 3U Rackmount Chassis - U3017M2000 U3017M2000 Features: (1) Unique outward appearance design Industrial grade aluminum drive tray handle
device Defer to the customer demand change color
of drive tray handle Recognize the Raid position using rubber
cap Fiber optical drive tray status indicator
(2) Effective cooling system 4 x 8cm hot-swappable system cooling fans
with status monitor 2 x 8cm ball bearing fan on rear to
optimize airflow
(3) Firm main body structure & maximum
drive capacity Durable handle may draw out more than
10,000 of times 3.5”hot-swap x 16, internal 3.5”x 2, slim
DVD x 1 single / multilane SATA / SAS backplane
option Front access USB connector x 2, 1394 IEEE x
2
(4) Easy installation and maintenance Support up to EATX ( 12” x 13”) Manage Cable in order Extractable fan module bracket provide elbowroom assembly Options for 14 slot rear plate
Specification: Model NO. U3017M2000 Standard EIA-RS310D Dimension (W x D x H) 481mm x 660mm x 3U (18.9” x 26” x 3U) Material SGCC
/ 1.2mm thickness Backplane SATA
3G, SAS, SATA Multilane M/B Extended
ATX ( 12” X 13”) Drive bays 3.5”hot-swp
x 16, internal 3.5”x 2, slim ODD x 1 Coolings 4
x 8cm hot-swappable cooling fans (middle) + 2 x 8cm cooling fan (rear) Indicators Power,
Fan Failure, HDD LED Controls Power
on/off, system reset, USB port x 2, 1394IEEE port x 2 Power Supply 2U single PSU / 2U Redundant PSU | |||||
| > Add to cart | ||||||

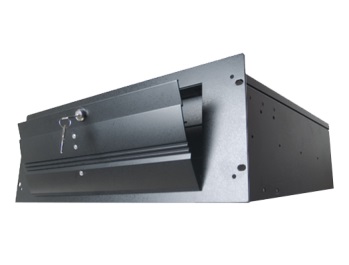

.jpg) | 4U Rackmount Chassis - U4004N1000 U4004N1000 Features: Unique Outlook Design Reliable Safety Device Super System Expansibility Easy Assembly & Service Effective cooling design to tackle thermal
issues
Specification: Model NO. U4004N1000 Standard EIA-RS310D Dimension (W x D x H) 481mm x 450mm x 2U (18.9” x 17.7” x 1.7”) Material SGCC
/ 1.2mm thickness (Top cover 1.4mm) M/B EATX
( 12” X 13”) Drive bays 5.25”
x 3 , Exposed 3.5” x 1, Internal 3.5”x 1 Coolings 1
x 12cm ball bearing (middle) Indicators Power,
HDD, Fan fail LED Controls Power
on/off, system reset, alarm Reset, USB port x 1 Power Supply PS2 Type PSU (300W ~ 500W) 300 / 400W Mini Redundant PSU | |||||
| > Add to cart | ||||||

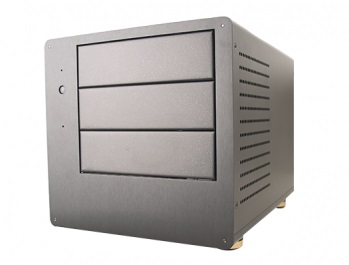

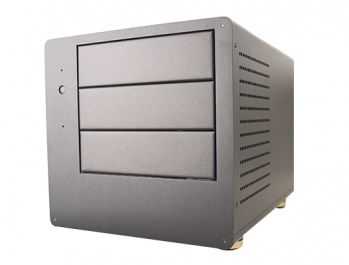

.jpg) | Mini ITX Chassis - P4003N0000 P4003N0000 Features: (1) Unique Outlook Design Industrial grade aluminum front bezel
device Defer to the customer demand change color
(2) Easy Assembly & Service Support to Mini -ITX ( 170 x170mm)
(3) Effective cooling design to tackle
thermal issues 1 x 12cm fan
Specification: Model NO. P4003N0000 Standard EIA-RS310D Dimension (W x D x H) 208mm x 282mm x200mm (8.2” x 11.1” x 7.9”) Material SGCC
/ 1.0mm thickness M/B Mini
ITX Drive bays 5.25”
x 3 , Internal 2.5”x 1 Coolings 1
x 12cm ball bearing (rear) Indicators Power,
HDD LED Controls Power
on/off, USB port x 2 Slots 1 Power Supply 1U Flex type PSU | |||||
| > Add to cart | ||||||

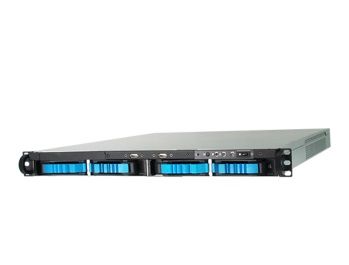

.jpg) | Storage Rackmount Chassis - U1105M2000 U1105M2000 Features: (1) Unique outward appearance design Industrial grade aluminum drive tray handle
device Defer to the customer demand change color
of drive tray handle Recognize the Raid position using rubber
cap Fiber optical drive tray status indicator
(2) Effective cooling system 5x 4cm cooling fans with status monitor
(option)
(3) Firm main body structure & maximum
drive capacity Durable handle may draw out more than
10,000 of times 3.5”hot-swap x 4 (SATA/SAS) , 2.5” HDD x 2,
1 x slim ODD SATA / SAS or Mini SAS backplane for option Front access USB connector x 2
(4) Easy installation and maintenance Support up to ATX ( 12” x 10.5”) Manage Cable in order provide elbowroom assembly
Specification: Model NO. U1105M2000 Standard EIA-RS310D
Dimension (W x D x H) 481mm x 495mm x 1U (18.9” x19.5” x 1.7”) Material SGCC M/B ATX
( 12” X 10.5”) Drive bays 3.5”hot-swap
x 4 (SATA/SAS) , 2.5” HDD x 2, 1 x slim ODD Coolings 5
x 4cm ball bearing (side) Indicators Power,
Fan Failure, Lan LED, HDD LED Controls Power
on/off, system reset, USB port x 2 Slots 1
(PCI or PCI-E) Power Supply 1U Single PSU (200 x 100 x 40.5mm) (L x W x H) | |||||
| > Add to cart | ||||||

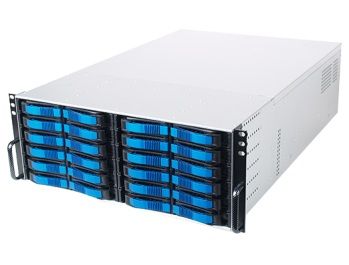

.jpg) | Storage Rackmount Chassis - U4025H3000 U4025H3000 Features : (1) Unique outward appearance design Industrial grade aluminum drive tray handle
device Defer to the customer demand change color
of drive tray handle Recognize the Raid position using rubber
cap Fiber optical drive tray status indicator
(2) Effective cooling system 4 x8cm hot-swappable system cooling fans
with status monitor 1 x 9cm ball bearing fan on rear to
optimize airflow
(3) Firm main body structure & maximum
drive capacity Durable handle may draw out more than
10,000 of times 3.5”hot-swp x 24, internal 3.5”x 4, , slim
DVD x 1 single / multilane SATA / SAS backplane
option
(4) Easy installation and maintenance Support up to EATX ( 12” x 13”) Manage Cable in order Extractable fan module bracket provide elbowroom assembly Options for 14 / 20 slot rear plate
Specification: Model NO. U4025H3000 Standard EIA-RS310D Dimension (W x D x H) 481mm x 660mm x4U (17.4” x26” x 4U) Material
SGCC / 1.2mm thickness Backplane SATA
3G, SAS, SATA Multilane M/B Extended
ATX ( 12” X 13”) / Quad CPU ATX Board Drive bays 3.5”hot-swap
x 24, internal 3.5”x 4, slim DVD x 1 Coolings 4
x 8cm hot-swappable cooling fans (middle) + 1 x 9cm cooling fan (rear) Controls Power
on/off, system reset, Power Supply 1350W (Zippy Model : M1W4-6D50F) | |||||
| > Add to cart | ||||||
