Details of technical parameter

       Diameter (D)mm    Height (T)mm    Diamond

Thickness

1308    13.44±0.03       8.00±0.10        2.30±0.20

1313    13.44±0.03       13.20±0.10       2.30±0.20

1608  15.88/16.00±0.03   8.00±0.10        2.30±0.20

1613  15.88/16.00±0.03   13.20±0.10       2.30±0.20

1908    19.05±0.05       8.00±0.10        2.30±0.20

1913    19.05±0.05       13.20±0.10       2.30±0.20

1916    19.05±0.05       16.31±0.10       2.30±0.20

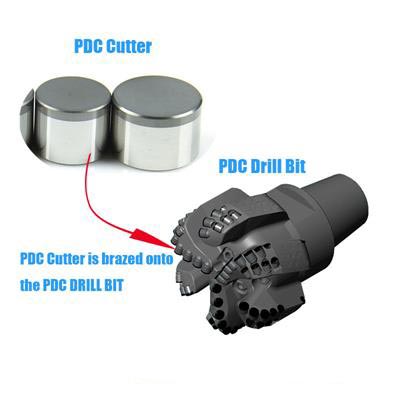

Features and Benefits of Cutting Tool

1. High abrasive resisatan, high quality material are sintered to form the diamond layer which is of rigid framework structure. The features compact structure and good abrasive resiatanc.

2. Features good impact resistance. The diamond Pcd Cutter uses tungsten carbide material which has good impact resistance and the diamond layer can guarantee the toughness of the impact resistance.

3. Has strong binding force. The junction plane of the diamond layer and the tungsten carbide layer uses a corrugated tooth design. The binding force can be increased and the bad impact of the plane residual stress on the performance can be avoided.

4. Has good self sharpening performance. The good organization microstructure of the diamond makes the diamond particle remain sharp all times.

5. Features good thermal conductivity. Its highest bearing temperature can reach 700°C.
