     Holykell Technology Company Limited

     About this company : Holykell factory was established since 1998 and we are beginning consisted of our oversea departments on 2010, which has been concentrated the electronic surveying area of technology each kind of high quality sensor's development and the management, we improve the product quality and the service unceasingly, in industry in set up the good brand prestige.

     Contact : Kenneth Huy, marketing manager
     Headquarters : Building No. 5,No. 8 Lu Tian Road, Changsha, Hunan, 410205, China
     Phone : +86-0731-89873265, Fax : +86-0731-89873646
     Website : Log on to trade instantly , Email : Log on to trade instantly

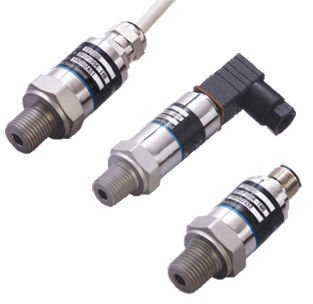

     High Performance Pressure Sensor HPS2000 Series HOT High Performance Pressure Sensor HPS2000 Series HOT Pressure Sensor HPS2000

Specifications

Pressure Sensors
* Pressure Range:0 to 6000Bar
* Pressure Semsor Overload: 300%F.S
* Impact resistance
* Certificate:CE; ExiaIICT6

HPS2000 Series High Performance Pressure Sensors High Performance Pressure Sensor

High Performance Pressure Transducer (0-10V; 0-5V) & Transmitter (4-20 mA) ----- SEE Model HPT2000-T Series

Profiles:
HPS2000-T Series high performance pressure sensor adopt MEMS technology and the advanced glass micro-melting technology to avoid influences on the product caused by the temperature, humidity, mechanical fatigue and medium, thus to improve its permanent stability in the industrial environment. Pressure Sensor chamber is made of 17-4PH stainless steel in an integrated way without welding seams or O-rings, free of leakage troubles. this pressure sensor digital circuits capable of strong RFI & EMI resistance and automatic temperature compensation are installed inside the transmitter and the transmitter is featured with the strong interference resistance, pressure sensor have a wide working temperature scope and permanent stability, etc. The series pressure sensor provide several optional pressure connections and electric connections for customers.

Pressure Type

gauge, sealed gauge

Pressure Range

0-1 Bar......6000 Bar Optional.

Overload:

3 times Full Range

Burst Pressure

5 times Full Range.

Power Supply

10 V DC or 5-15 V DC

Output

3mV/V ~ 10 mV/V; 0~100 mV F.O; -50 mV ~ +50 mV F.O optional

Electronic Wire

4 Wire

Accuracy

(Included Linearity Hysteresis

Repeatability)

≤ ±0.1%F.S

≤ ±0.2%F.S

optional

Long-term Stability

Max 0.05%F.S;  Standard 0.1%F.S;  Min 0.25%F.S

Zero temp. drift

0.02%FS/°C(≤100kPa),  0.03%FS/°C(>100kPa)

FS temp. drift

0.02%FS/°C(≤100kPa),  0.03%FS/°C(>100kPa)

Temperature Compensation

-20°C~85°C

Working Temp

-40°C~85°C

Storage Temp

-40°C~125°C

Medium compatible

Various media compatible with the 316L stainless steel

Insulation Resistance

>100 MΩ 100 V DC

Electronic connection

Terminal Box DIN43650 IP65.

Process connect port

1/4’’NPT Male, 1/2’’NPT Male, G1/2’’... (by order)

Response time

≤10 ms

Response Frequency (-3dB)

3.2KHZ

Mechanical Vibration

±20g

Impact (11ms)

100g

Body Material

17-4PH stainless steel

Certificate approve

CE Certificate.

EMC Standard

electromagnetic radiation: EN50081-1/-2

electromagnetic susceptibility: EN50082-2

Explore Proof

Ex(ia) II CT5 (intrinsically safe)

Water Proof Grade

IP65

Remarks

Special applications request by order
