| WUXI ANBER MACHINE CO., LTD. | ||||||
| About this company : Anber machine company can produce many kinds of wire drawing machine, such as Straight Line Wire Drawing Machine (also called deadbeat wire drawing machine, intermediate wire drawing machine, block wire drawing machine), OTO type Wire Drawing Machine (also called pulley type wire drawing machine, High Speed Super Fine Machine), Water Type Wire Drawing Machine (also called wet type wire drawing machine), Cold Rolling And Ribbing Machine, Cold Drawn Bench, Copper Rod Horizontal Wire Drawing Machine (also called rod break down), Single Head Wire Drawing Machine, Vertical Type Wire Drawing Machine (also called headstand wire drawing machine). We can also supply the wire drawing machine to draw special material, such as CO2 Welding Wire Drawing line, Flux-Cored Wire Drawing line,Low carbon Wire Drawing line, Aliminum Wire Drawing line, S.S. Annealing Wire Drawing line, etc. Also we can supply the accessory machine for the wire drawing machine, such as wire pointing machine, wire descaling machine, butt welding machine, annealing furnace, drawing die, die polishing equipment, spooler take-up, wire pay-off, wire discharging machine. If you want special enquiry, we also can do single schedule for you. | ||||||
| Contact : Lisa LI | ||||||
| Headquarters : No. 81 Xixian Road Fangqian Industry, wuxi, jiangsu, 214000, China | ||||||
| Phone : +86-510-88239310, Fax : +86-510-88236613 | ||||||
| Website : Log on to trade instantly , Email : Log on to trade instantly | ||||||

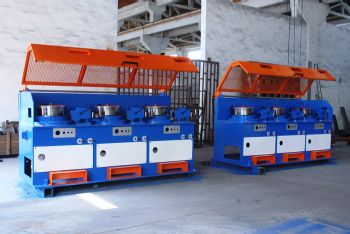

 | LZ300 Intermediate Wire Drawing Machine LZ300 The Straight Line Wire Drawing Machine is applicable to high/low carbon steel wire, stainless steel wire, non-ferrous metals wire. Mechanical features include the drawing capstan undergoes the hardness spray welding and grinding treatment as well as dynamic balance verification. With internal water cooling and external fan cooling systems; the drawing die base can be drawn out, easy for replacement, and equipped with internal water cooling system; with the protection devices including the safe gate, breaking stop, and emergency stop, the driving gear in the gear box undergoes the high hardness grinding treatment, long in service life and low noise. Wire Drawing Production Line: The full production line includes: pay-off stand----wire descaling machine----wire pointing machine----butt welding machine-----wire drawing machine----annealing machine----drawing dies and die polishing equipment----spooler take-up Technical parameters of deadbeat wire drawing machine: Model: LZ300 Capstan diameter: 300 mm Draw passage: 2-11 times Material strength: ≤1250 Mpa Incoming dia.: 2.8 mm Outgoing dia.: 0.5mm Average partial compressibility: 20% Max. Wire drawing speed: 25 m/s Single motor power: 7.5-18.5kw, frequency-changed | |||||
| > Add to cart | ||||||
| ||||||
|
|
