     Re-Atlantis Pressure Gauge Co., Ltd.

     About this company : Founded in 1992, Re-Atlantis Enterprise Co., Ltd. manufactures pressure gauges, thermometers,and its extending products. Our overseas markets include North America, South America, Asia and Europe. Having high-tech facilities and machinery, we can ensure the excellent quality and the competitive price. Besides, all of our staff will endeavor to provide you with the best service to gain your trust and patronage as a customer. For more details, please contact us by . Please specify the product name you are looking for.

     Contact : Mini Chen, sales exeutive
     Headquarters : 1F, 19, Lane 113, Zhiyuan 2nd Rd., Beitou, Taipei, 112, Taiwan, Republic of China
     Phone : 886-2-28203405, Fax : 886-2-28203406
     Website : Log on to trade instantly , Email : Log on to trade instantly

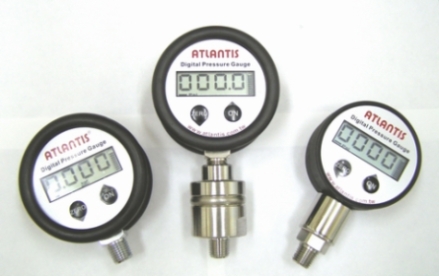

     Digital Pressure Gauge Digital Pressure Gauge DPG-M2.5 series

Country of Origin: Taiwan
Brand: Atlantis
Product Specifications/Features:
1. Features:
   . Accuracy better than -/+ 1% F.S.
   . Bottom, rear and panel installation available
   . User can re-calibrated the gauge
   . Four units selectable
   . Dual-polarity value display (only available for range
     above 100psi)
   . Battery life indication
   . Auto-off time selectable
   . Always on & Auto-off alternative
2. Functions:
   . Display: 4 digits LCD display, size 46 x 15 mm
   . Units selectable:
     Pressure gauge: psi, bar, kg/cm2, kPa
     Vacuum gauge: mbar, mmHg, inHg, kPa
   . Proof pressure:
     200% F.S. (vac ~ 300 psi)
     150% F.S. (1000 ~ 5000 psi)
   . Accuracy: ±0.3% F.S. ±1 digit  25℃, thermal
     error max. ±1% F.S.
   . Measured media:
     Brass connection type: extremely clean & non-
     corrosive gases only
     Diaphragm type: all kinds of media according to
     diaphragm material
   . Case size:
     67 mm dia. (77 mm dia. with rubber shroud), plastic
     material (rubber shroud protection only for brass &
     bottom connection)
     Panel installation type: flange dia. 80 mm, screw
     dia. 3.6 mm
   . Connection:
     Brass connection type: 1/4" PT or NPT male thread,
     electroplate
     Diaphragm type: standard 1/4" PT or NPT male thread,
     SS304 (other size and material available)
   . Supply voltage:
     Standard: DC 9V battery (for more than 8000 times,
     each time 180 sec.)
     Option: external DC 12V or DC 24V or AC 110V or AC
     220V
   . Zero offset: display can be zeroed when it is not
     zero offset due to temp. effect
   . Peak hold mode: continuous reading & peak hold
     display alternative
   . Power saving: auto-off time setting from 5 to 1200
     sec. (factory setting 180 sec.)
   . Temperature:
     Operation: 0 ~ 45oC/32 ~ 115oF
     Storage: -10 ~ 75oC/15 ~ 165oF


Primary Competitive Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, In a Variety of Design, Small Order Acceptable, ODM Accepted, OEM Accepted

Trade Information: FOB Taiwan or Ex-work

Sales Method: Export, Manufacture, Wholesale, OEM/ODM

Payment Term: T/T, L/C at Sight
