     Liaoning zhongye shanghai branch

     About this company : Liaoning Zhongye Technology and Industry Development Co., Ltd., with investment assents of 50, 000, 000RMB, housed in 35000square meters in China historical industry base-Shenyang, is a hi-tech enterprise specializing in manufacturing Solvent printing machine, printing equipment, indoor and outdoor printing media, solvent ink and water based ink. Our marketing net has spread all over China and abroad likely, Thailand, Malaysia, Turkey, Australia and European countries. Our company has built strategic cooperation relationship with UK XAAR Company and US Adobe Company.

     Contact : cheng han, Sales director
     Headquarters : unit 3 A, 600 lane, tianshan road, changning district, shanghai, 200080, China
     Phone : 86-21-52067859, Fax : 86-21-52067839
     Website : Log on to trade instantly , Email : Log on to trade instantly

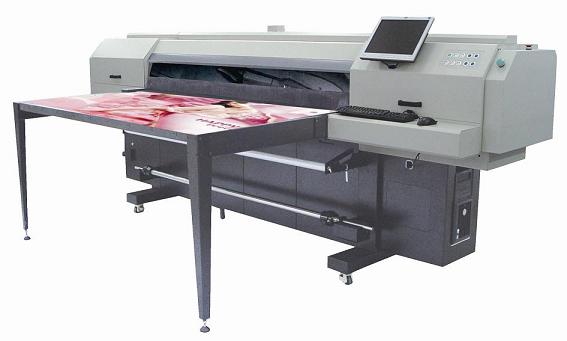

     Seiko 51 Solvent Printer Seiko 51 Solvent Printer ZY-SK-3200 UV

Printhead: Seiko special UV printhead (spt255/ spt 510 optional)
Printhead quantity: 5 piece (4/5/8/10 optional)
Colors: 4(CMYK), 5(CMYKW), 6(CMYK, LC, LM) and 7 (CMYKW, LC, LM)available
Ink type: UV ink
Media handle: Roll to roll and sheet to sheet Drying
System: UV lamps
Max Print Width: 2.20 meter (1.27m, 1.8m, 2.5m, 3.2m optional)
Max media thickness: 4.80cm
Media width: 2250mm
Auto cleaning system: Equipped
Printing Resolution: 300*300/ 600*450/ 600*600/ 900*600/ 1200*1200 dpi
File Format: TIFF, JPEG, POSTSCRIPT3, EPS, PDF etc

Print Speed:
Standard Resolution: 25 m2/h
High Resolution: 17 m2/h
Super High Resolution: 8 m2/h
Print Interface: Optical fiber Machine

Dimension: 4.20m*1.16m*1.63m
Max roll dimension: Φ 80cm
Machine weight: 2200kg

  > Add to cart

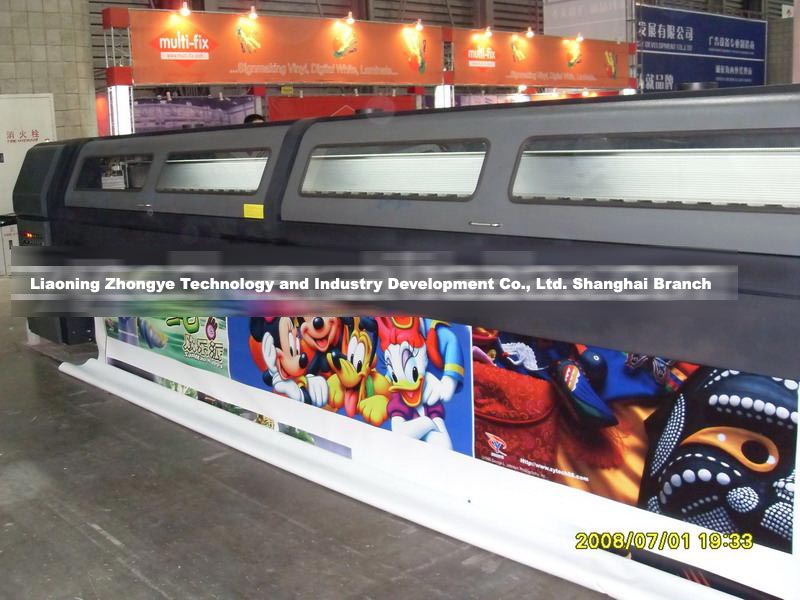

     Heavy Series With 8 Pcs of Seiko 51 Printheads  Heavy Series With 8 Pcs of Seiko 51 Printheads SK-3206

Name 3400 (6COLORS) Class ZY-SK series Print technology Drop-on-demand Piezo electric Printhead 8/12(spt510/255) Print width 3.2M Resolution 1440dpi max Speed 2pass 80m/h ; 4pass 45m/h ; 6pass 32m/h Locating mode Raster /servo Color CMYK W LC LM Media width 3.2M Media handl Roll to roll Media types Vinyl sheet and carpet paper, flex banner pvc mesh fabrics Ink Solvent/ two-year outdoor life File format TIFF JPEG Postscript 3 EPS PDF Working process Printmon software for windows xp Rip Photoprint / maintop Power supply 50hz / 60hz 220v (10%) 20A Operation environmeng (Tempperature ) 18-26(Humidity ) 40%-70% Dimesion 5.2m*1.4m*1.5m Weight 1500Kg Special Offer at present: 1) Free Software Rip : Photoprint / Maintop 2) Video CD + User manual in English + online technical support 3) Free spare package 4) One year guarantee (parts and labour) + Ongoing Support
  > Add to cart

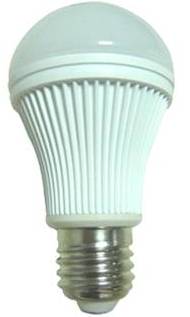

     LED Bulb LED Bulb

Specifications:

High Power and SMD Bulb with Dimmable Available

Power: 2 W 3W 4W 5W 6 W Available (also SMD series)

Base: E14 E26 E27 B22 Ba15D E12

Luminous Flux: 140 to 400lm

Input Voltage: AC100 to 265 V

CCT: 2700K    7000K

Life Time: 50000 Hours

Without Mercury and UV

 Features and Benefits

1 Emit bean light, average aperture, no speckle

2 No UV, no flickering, good for eyes

3 Good quality and good heat dissipation.

4 High energy efficiency with low power consumption.

5 Real replace 40 W or below the traditional incandescent bulb

6 Green and eco-friendly lighting source without mercury, UV and infrared light.

7 GSE CE RoHs ISO9001:2000

Trade terms

1 Payment: T/T, 30% deposits, before the ship to pay the balance end.

2 Delivery time

3 Samples can be delivered in 3 days.

4 Freight is quoted under your requests.

5 Shipping Port: Shanghai, China (Mainland).

6 Discounts are offered depend on quantities

7 MOQ: 200 pieces.


  > Add to cart


     Solvent inkjet Printer Solvent inkjet Printer xr-3224

This solvent printer is powered by 24 pieces of Xaar128-360 print-heads. Our solvent printers are the reasonable choice for printing professional looking to attract new revenue from jobs requiring fast turnaround and superior image quality. Those roll to roll solvent printers would apply to various substrate media type like Paper, Flex Banner, PVC, Mesh Fabrics, Vinyl Sheet and Carpet...Our solvent printers are with our engineers daily traveling worldwide, the after sales service for you is well guaranteed. Printhead: 24 pieces (for 6 color)(Xaar128-360) Print Width: 3.2m Media Width: 3.3m Resolution: 720 Dpi Speed: 2pass: 58 square meters per hour 3pass: 38 quare meters per hour 4pass: 30square meters per hour 6pass: 22 square meters per hour 8pass: 18 square meters per hour Mechine Size: 4.45m x 0.9m x 1.3m Weight: 450kg Color: 6 colour: CMYK LM LC Media Handl: Roll to Roll Media Types: Paper, Flex Banner, Canvas, PVC, Mesh Fabrics, Viny1 Sheet and Carpet. Ink: Solvent-Base Pigment, Two-year Outdoor Life File Format: TIFF, RGB/CMYK Working Process: Maintop Software For Printing(Windows 98, Windows XP) Rip: Maintop/Onyx/Photoprint +1 Year Warranty (parts and labour) + Ongoing Support for our solvent printers +XAAR print heads provide high quality, productivity, and reliability +Direct printing on wide variety of media with six colour solvent-based ink produces vivid colours +True solvent-based inks provides UV-durable, water and abrasion-resistance prints for 2 year of outdoor use +Constant control of air pressure inside head enables smooth ink flow +Automatic head cleaning system maintains the best condition for head, and unattended operation of machine +Automatic media feeding system provides stable and unattended operation of machine +Automatic ink supply system +Powerful and stable head carriage shaft for quality printing +Safely designed drying fan shortens drying time and allows prints to dry fast +User friendly control panel for easy operation +We also have other 5m, 3.4m, 3.2m, 2.5m, 1.9m. 1.5m models of solvent printers. Please see our productlist.
  > Add to cart


     Solvent printer Solvent printer SK5306

ZY gantic seriers printer, adopting Xaar500/Seiko 510 heads,double servo motor for X and Y axis movement to give high pricise printing, adopting HWIN linear guide rail .5meter max. printing width and square shape carriage rail to ensure max. production volume which can reach 90sq.m per hour... Name: 5306(6COLORS) Class: ZY-SK series Print technology: Drop-on-demand Piezo electric Printhead: 6(Seiko 510/XAAR 500) Print width: 5.0M Resolution: 1440dpi max Speed: 2pass 60m/h;4pass 42m/h;6pass 24m/h Locating mode: servo Color: CMYK LC LM Media width: 5.0M Media handl: Roll to roll Media types: Vinyl sheet and carpet paper,flex banner pvc mesh fabrics Ink : Solvent/two-year outdoor life File format: TIFF,JPEG,Postscript 3,EPS,PDF Working process: Printmon software for windows xp Rip: Photoprint /maintop Power supply: 50hz/60hz 220v(10%)20A Operation environmeng: (Tempperature )18-26(Humidity )40%-70% Dimesion: 7.2m*1.4m*1.7m Weight: 3000Kg 5m printer can satisfy with your different printing demand .High quality printheads ensure the best printing effect !Very competitive price will offer you valuable printer!! The detail description of 5m printer + Whole steel made drop-on-demand print head, super long life time,high resolution can reach to 1440 dpi.Easy to maintain and clean +Direct printing on wide variety of media with six colour solvent-based ink produces vivid colours +True solvent-based inks provides UV-durable, water and abrasion-resistance prints for 2 year of outdoor use + .Voltage of heads is adjustable to the environment temperature, thus solve the problem of printing fading out of ink which is caused by temperature change + Powerful Maintop and Photoprint output software make easy operation, available for printing in two modes + Automatically skip the white area of printing, make higher effective. .Need black only to print black words, no need 3 color or more color combination to make this print + Continue-printing system enable printing continue from where the power break-off, enable no waste time in break off period. +.Aluminum beam for printing, lower noise, enable printing quietly. + Air sucking system on printing platform enable no scratching of heads and no draping over of media while printing. This make the higher resolution printing realized +Automatic media feeding system provides stable and unattended operation of machine + Automatic print heads cleaning system, positive pressure cleaning and flushing cleaning available + Pre-heating, after-heating system equipped.Safely designed drying fan shortens drying time and allows prints to dry fast + Fiber data cableadopted to ensure fast and realiable data transfer; adopting DC motor and raster togethere to ensure pricise printing Warrency +1 Year Warranty ( without printheads and consumable spare parts of ink system ) +With the printer ,we send you One free spare parts kit including all the consumable spare parts ; Software CD and Demo VCD and manual freely .You can learn how to install the machine from the vedio we sent to you . + Our engineer can go to clients'place to install the printer as client demanding and teach the client how to operate and maintain the machine .All the service is free .The client only need to pay the air ticket and accommodation charge. +Two of our engineers who is English-spoken & progfessional of techinical are on line 24 hours .They can offer you on-going service and solve the printer problem at anytime !
  > Add to cart
