| ALL WELL INDUSTRY CO., LTD | ||||||
| About this company : We would like to introduce ourselves as the largest tire & tube machinery maker in Taiwan. We mainly produce whole plant equipment for making tires and tubes. We have supplied our machines to all the well-known tire companies in Taiwan. Besides our domestic tire companies, we have exported our machines to overseas for more than 40 countries to every worldwide known tire manufactures. Over years improvement, we have the honor to obtain patents for more than 50 items. Regarding to these special patents, our machines can efficiently produce high quality tires. | ||||||
| Contact : B.P. Chen, managing director | ||||||
| Headquarters : #75 Liuchiao W. Rd. , Pushin, Changhua, 513, Taiwan, Republic of China | ||||||
| Phone : 886-4-8346006, Fax : 886-4-8350823 | ||||||
| Website : Log on to trade instantly , Email : Log on to trade instantly | ||||||

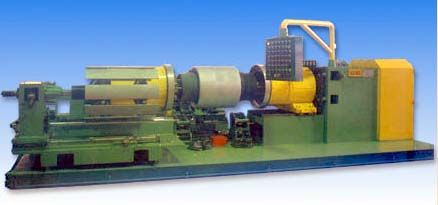

 | TRUCK & BUS TIRE BUILDING MACHINE AW-TB-2024 DRUM CONSTRUCTION: COLLAPSE TYPE; APPLICBLE TYRE: TRUCK/BUS TIRE, LIGHT TRUCK TIRE; CONTROL SYSTEM: PLC CONTROL, AUTO/MANUAL; DRUM DIAMETER: 20"-24", 15"-16"; BUILDING WIDTH: MIN.450~MAX.680mm; MIN.390~MAX.630mm WIDTH OF BAND: MAX.1300mm, MAX.1000mm; MAIN SHAFT MOTOR: 10HP×6P, 7.5HP×6P; DRUM REVOLUTION: 150/100/35rpm, 160/110/40rpm; UNDER-STITCHER MOTOR: 2HP×4P, 1HP×4P; SIDE-STITCHER: 1HP×4P, 1HP×4P; AIR PRESSURE: 7kg/cm2; DIMENSION: 7000×2600×2500mm, 5500×2200×2200mm; BUILDING SPEED: 3pockets with dule beads for 20" tire about 7 minutes per tire. | |||||
