| BTD CAR TOOLS CO.,LTD. | ||||||
| About this company : our core products are spray booth , wheel alignment , car lifter , tyre changer and wheel balancers. You may want to log on MarginUp to get more rmation . Thank you ! | ||||||
| Contact : Unis Xu | ||||||
| Headquarters : Mazha Industrial Area , Liusha, Puning , Asia, 515300, China | ||||||
| Phone : 86-663-3883960 , Fax : 86-663-3883968 | ||||||
| Website : Log on to trade instantly , Email : Log on to trade instantly | ||||||

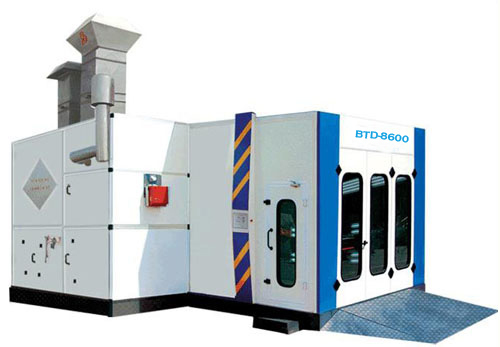

 | Unis Xu BTD 8600 Spray Booth BTD-8600 Spray Booth Product Instruction: Outside Size:(mm) 7040x5696x3500 Front Door:(mm) 3000(w)x2600(h) Inside Size:(mm) 6900x4000x2650 Total Power:(km) 23.4 Cabin System Wallboard EPS (epispastics polystyrene)Colorful Steel Skin Boards, 70mm Thick, Tongue & Groove Style Compound Construction, Aluminum-alloy Frame,Anti-flame and Heat-Insulation Basement Full Grid, Adjustable Height,Galvanized Steel Sheet Construction,Three Embossed Steel Ramps. Air Circulation System Inlet Turbine Fan Capacity: 23450m3/h Power: 9kw Quantity: 1set Outlet Turbine Fan Capacity: 30000m3/h Power: 7.5kw Quantity: 1set 54 pcs Ceiling Nozzles with 3 Centrifugal Fans for Drying Water Paint Air Purification system Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure Balance Gauge, TSP≤1.2mg/m3 Heating System Burner Italy Riello Brand,RG5S Diesel Burner, 260000Kcal/h, 20N Damp Motor Heat Energy Converter Stainless Steel, Argon Arc Welding,The Heat Exchange Rate 85% Max Temp:80。C, Heating Time: 4-5min(20-60。C), Fuel Consumption: 4-6kg/vehicle Light System Ceiling Light: 32 pcs 36w Philips Lamp; Bottom Light: 32 pcs 20w Philips Lamp, 1100 Lux Electric Controlling System PLC Controlling, Soft Touching Botton, Spray & Baking Switch, Light Switch,Emergency Stop, Breakdown Alarm Environmental Conversation System Multi-Layer Fiberglasss Filter | |||||
| > Add to cart | ||||||
| ||||||
|
|
