     HYUN DAE MECHANIC & ELECTRIC CO., LTD

     About this company : HYUN DAE MECHANIC & ELECTRIC CO.,LTD. 404-25, Jang-dong, Dalseo-gu, Daegu, 704-190 South Korea. Tel: 82-53-588-4011~5 Fax : 82-53-584-3102 Please log on to MarginUp for more contact details. We are one of leading manufacture of hydraulic and pneumatic press machine which can making on various size and with feature of light, small, simple, safe, silent. The body and parts make good rigidity and stable precision and specialty perfectly manifold block pipe line ,so looks like very simple.. The machine apply for : Assembly and Bending, Calking coining, Embossing and insertion by pressure, Marking and pressing, Riveting, trimming Our Machine Model follow light press machine , 1. Bench Type Hydraulic press (1Ton ~30 Ton ) 2. C-type Hydraulic press (3 ~ 50 Ton) 3. 4-Post Hydraulic press (3 ~ 50Ton ) 4. Pneumatic press (200k ~ 3Ton) 5. Booster press (3 ~50 ton) 6. Hydraulic Riveting M/C (Diameter 10, 10S, 15S ) 7. Pneumatic Riveting M/C (Diameter 3, 5, 10 ) 8. Hydraulic Embossing press (6, 80ton ) 9. Solenoid press (HSP type ) 5ton 10. Digital Date press (Accuracy press )/ press doctor (HHPD-type , Little press doctor (HLPD-Type ) 11. Lamination Press : Hot Press (HHT-Type ) Vacuum press(HVT-Type) 12 . Electro servo press (HDPS 1, 2,3,5 8tons) Any more need your party’s , we ready for you Waiting to nice meet the day Thank you Regards Mr. Chung / Export Manager

     Contact : Chang Soo Chung, Export Manager
     Headquarters : 404-25, JANGDONG DALSEOGU, DAEGU, 704-190, Korea, Republic of
     Phone : 82-53-5884011, Fax : 82-53-5843102
     Website : Log on to trade instantly , Email : Log on to trade instantly

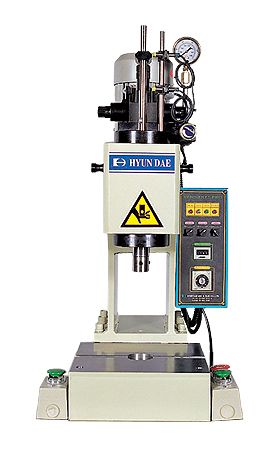

     Bench Type press machine Bench Type press machine HHP

Specification

Model
HHP-1S HHP-2 HHP-5 HHP-10 HHP-15 HHP-20

Capacity(Ton)
1 2 5 10 15 20

RAM STROKE(mm)
100 150 150 200 200 200

RAM Closing Speed(mm/sec)
80 142 128 167 130 114

RAM Pressing Speed(mm/sec)
80 90 38 22 19 20

RAM Opening Speed(mm/sec)
175 220 60 80 200 132

Weight(Kg)
270 320 340 860 1000 1400

Motor(220V/3Phase/4P)
0.75kw 1.5kw 1.5kw 2.2kw 2.2kw 3.7kw

Max Pressure(㎏/㎠)
61 86 98 103 141 116
