Hangzhou Wistar Mechanical & Electric Technology Co., Ltd. | ||||||
About this company : Hangzhou Wistar Mechanical & Electric Technology Co., Ltd. is a professional tubular motor manufacturer engaged in research, design, manufacture, selling and service. wistar motors are featured with high technology content, novel structure, low noise, easy to install, reliable operation etc. we have all kinds of remote control systems, which can be used for kinds of AC and DCmotors. our products can widely used in awnings, roller blinds, garage doors, projection screen. etc. it is easy to realize home and office automatization. wistar motors have a good reputation at both home and abroad, and our products are sold all over the world. wistar has obtained ISO9001: 2000 system test and CCC. CE. TUV certificates. wistar tubular motors will be sure the outstanding one in the field with excellent working team. wistar motor, enjoy a new life! | ||||||
Contact : kiko xie, sales manager | ||||||
Headquarters : Building 4, No. 3Xiyuan 7th Road, W, hangzhou, 310030, China | ||||||
Phone : 86057181958485, Fax : 86057181958485 | ||||||
Website : Log on to trade instantly , Email : Log on to trade instantly | ||||||

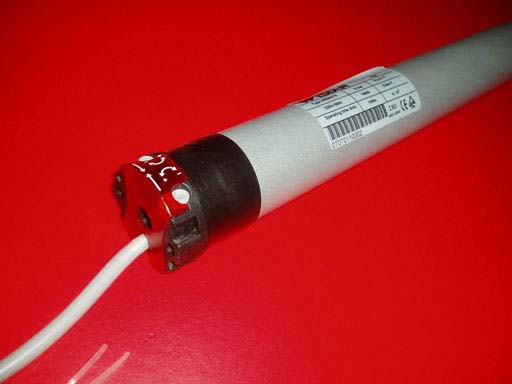

WSS5 Shutter Motor WSS50 Tubular Motor (WSS50) Standard Type ACpact structure, the special design of gearbox supply balanced running, low noise, widely used in electronic screen, roller awning, roller guard against theft curtains and roller garage door. Technical Datas: WSS50/10 Nominal Torque(Nm): 10 Tube Diameter(mm): 45 Nominal Consumption(W): 140/160 Nominal Voltage(V): 230/110 Nominal Current(A): 0.60/1.26 for 13rpm; 074/1.55 for 17rpm Output Speed(r/min): 13/17 Frequency(Hz): 50Hz/60HZ Running Time(min): 4min Thermal Protector(c): 130 Protection Index: IP44 Net Weight(kg): 2.15kg Total length(mm): 550 Maximum Turns(Turn): 40 Cable Length(mm): 2000 Technical Datas: WSS50/20 Nominal Torque(Nm): 20 Tube Diameter(mm): 45 Nominal Consumption(W): 160/220 Nominal Voltage(V): 230/110 Nominal Current(A): 0.74/1.55for 13rpm; 0.95/1.99 for 17rpm Output Speed(r/min): 13/17 Frequency(Hz): 50 Running Time(min): 4 Thermal Protector(c): 130 Protection Index: IP44 Net Weight(kg): 2.15 Total Length(mm): 570 Maximum Turns(Turn): 40 Cable Length(mm): 2000 Technical Datas: WSS50/30 Nominal Torque(Nm): 30 Tube Diameter(mm): 45 Nominal Consumption(W): 220/270 Nominal Voltage(V): 230/110 Nominal Current(A): 0.95/1.99 for 13 rpm;1.15/2.42 for 17rpm Output Speed(r/min): 13/17 Frequency(Hz): 50/60 Running Time(min): 4 Thermal Protector(c): 130 Protection Index: IP44 Net Weight(kg): 2.54 Total Length(mm): 600 Maximum Turns(Turn): 40 Cable Length(mm): 2000 Technical Datas: WSS50/40 Nominal Torque(Nm): 40 Tube Diameter(mm): 45 Nominal Consumption(W): 245 Nominal Voltage(V): 230/110 Nominal Current(A): 1.02/2.14 Output Speed(r/min): 13 Frequency(Hz): 50/60 Running Time(min): 4 Thermal Protector(c): 130 Protection Index: IP44 Net Weight(kg): 2.76 Total Length(mm): 600 Maximum Turns(Turn): 40 Cable Length(mm): 2000 Technical Datas: WSS50/50 Nominal Torque(Nm): 50 Tube Diameter(mm): 45 Nominal Consumption(W): 270 Nominal Voltage(V): 230/110 Nominal Current(A): 1.15/2.42 Output Speed(r/min): 13 Frequency(Hz): 50/60 Running Time(min): 4 Thermal Protector(c): 130 Protection Index: IP44 Net Weight(kg): 2. 76 Total Length(mm):600 Maximum Turns(Turn): 40 Cable Length(mm): 2000 | ||||||
