| Dafeng City Long-Range Machine Co.,Ltd | ||||||

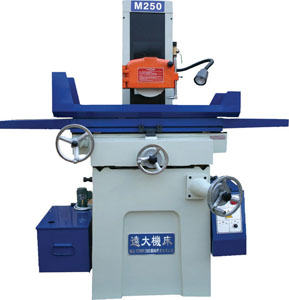

| About this company : Our company is an enterprise of producing surface machine, has the quality clearance of export sale and has passed through the international quality system with the certificate of ISO 9001:2000.The products also have passed the national inspection of machine tool. The major products of our company are model M618A MS618A M820 MS820 MY820 M250 and so on , which adopt the V-type guide, bring transmission by synchronous belt. Meanwhile, adopt the exceeding precise P4 level ball bearing for spindle, having complete attachment with electro-magnetic chuck or the dense chuck of permanent magnetism and having the following features: operating simple and convenient, low noise, high precision for processing, steady mechanical performance, reliable hydraulic system of table longitudinal movement and a long-life service, mostly suitable for applying to process various moulds and ceramics. | ||||||
| Contact : william hua, Sales manager | ||||||
| Headquarters : No8.Jingyi Road,Development Area, Da, yancheng, Jiangsu, 224100, China | ||||||
| Phone : 86-515-83817039, Fax : 86-515-83811112 | ||||||
| Website : Log on to trade instantly , Email : Log on to trade instantly | ||||||

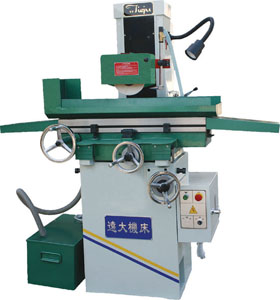

 | Manual surface grinder M618A M618A Specifications and Parameters of Surface Grinders Model M618A M820 MY820 M1022 MY1022 MY1224 Table size (mm) 460×180 480×200 480×200 540×250 540×250 600×300 Max. table travel ( mm) 500×190 530×220 530×220 560×260 560×260 650×310 Max. grinding area ( mm) 500×190 520×220 520×220 540×240 540×240 650×310 Max. distance from table to spindle center (mm) 335 490 490 490 490 510 Table slide-way V-type rail with Steel-ball. Double-V rail with steel-ball Double V-type rail Double-V rail with steel-ball Double V-type rail Double-V rail Feed of Cross Handwheel per revolution (mm) 2．5 2．5 2．5 2．5 2．5 per graduation (mm) 0．02 0．02 0．02 0．02 0．02 0．02 Feed of Vertical handwheel per revolution (mm) 1．25 1．25 1．25 2．5 2．5 2．5 per graduation (mm) 0．01 0．01 0．01 0．01 0．01 0．01 Wheel speed (50HZ) 2850 2850 2850 2850 2850 1450 Wheel size (WA46K5V) 7×1/2×11/4 8×3/4×11/4 8×3/4×11/4 8×3/4×11/4 8×3/4×11/4 12×1×3 Power of Spindle motor (W) 1100 1100 1100 1500 1500 2200 Hydraulic station motor (W) 1500 1500 1500 Working Pressure (Mpa) 3 3 3 Max. runoff ( L/min) 18 18 20 Fuel tank capacity ( L) 80 80 80 Coolant pump (W) 40 40 40 40 40 40 Machine net weight ( Kg) 650 700 750 850 900 1200 Packing gross weight ( Kg) 750 800 850 950 1000 1300 Machine size (M) 1.55×1.06×1.59 1.68×1.14×1.80 1.68×1.14×1.80 1.80×1.40×1.80 1.80×1.40×1.80 1.80×1.40×1.80 Packing size (M) 1.02×1.15×1.87 1.14×1.24×1.96 1.14×1.63×1.96 1.20×1.34×1.96 1.25×1.63×1.89 1.50×1.80×1.98 Notes: Every model can be equipped with dynamical system and digital readout system according to the customer’s demands, DRO resolution is 0.001-0.005mm | |||||
| > Add to cart | ||||||

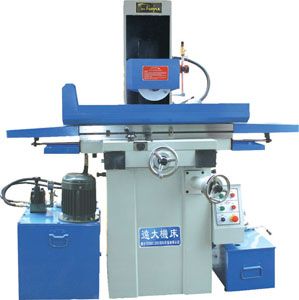

 | Hydraulic surface grinder MY820 MY820 Specifications and Parameters of Surface Grinders Model M618A M820 MY820 M1022 MY1022 MY1224 Table size (mm) 460×180 480×200 480×200 540×250 540×250 600×300 Max. table travel ( mm) 500×190 530×220 530×220 560×260 560×260 650×310 Max. grinding area ( mm) 500×190 520×220 520×220 540×240 540×240 650×310 Max. distance from table to spindle center (mm) 335 490 490 490 490 510 Table slide-way V-type rail with Steel-ball. Double-V rail with steel-ball Double V-type rail Double-V rail with steel-ball Double V-type rail Double-V rail Feed of Cross Handwheel per revolution (mm) 2．5 2．5 2．5 2．5 2．5 per graduation (mm) 0．02 0．02 0．02 0．02 0．02 0．02 Feed of Vertical handwheel per revolution (mm) 1．25 1．25 1．25 2．5 2．5 2．5 per graduation (mm) 0．01 0．01 0．01 0．01 0．01 0．01 Wheel speed (50HZ) 2850 2850 2850 2850 2850 1450 Wheel size (WA46K5V) 7×1/2×11/4 8×3/4×11/4 8×3/4×11/4 8×3/4×11/4 8×3/4×11/4 12×1×3 Power of Spindle motor (W) 1100 1100 1100 1500 1500 2200 Hydraulic station motor (W) 1500 1500 1500 Working Pressure (Mpa) 3 3 3 Max. runoff ( L/min) 18 18 20 Fuel tank capacity ( L) 80 80 80 Coolant pump (W) 40 40 40 40 40 40 Machine net weight ( Kg) 650 700 750 850 900 1200 Packing gross weight ( Kg) 750 800 850 950 1000 1300 Machine size (M) 1.55×1.06×1.59 1.68×1.14×1.80 1.68×1.14×1.80 1.80×1.40×1.80 1.80×1.40×1.80 1.80×1.40×1.80 Packing size (M) 1.02×1.15×1.87 1.14×1.24×1.96 1.14×1.63×1.96 1.20×1.34×1.96 1.25×1.63×1.89 1.50×1.80×1.98 Notes: Every model can be equipped with dynamical system and digital readout system according to the customer’s demands, DRO resolution is 0.001-0.005mm | |||||
| > Add to cart | ||||||
 | Manual surface grinder M1022 M1022 Specifications and Parameters of Surface Grinders Model M618A M820 MY820 M1022 MY1022 MY1224 Table size (mm) 460×180 480×200 480×200 540×250 540×250 600×300 Max. table travel ( mm) 500×190 530×220 530×220 560×260 560×260 650×310 Max. grinding area ( mm) 500×190 520×220 520×220 540×240 540×240 650×310 Max. distance from table to spindle center (mm) 335 490 490 490 490 510 Table slide-way V-type rail with Steel-ball. Double-V rail with steel-ball Double V-type rail Double-V rail with steel-ball Double V-type rail Double-V rail Feed of Cross Handwheel per revolution (mm) 2．5 2．5 2．5 2．5 2．5 per graduation (mm) 0．02 0．02 0．02 0．02 0．02 0．02 Feed of Vertical handwheel per revolution (mm) 1．25 1．25 1．25 2．5 2．5 2．5 per graduation (mm) 0．01 0．01 0．01 0．01 0．01 0．01 Wheel speed (50HZ) 2850 2850 2850 2850 2850 1450 Wheel size (WA46K5V) 7×1/2×11/4 8×3/4×11/4 8×3/4×11/4 8×3/4×11/4 8×3/4×11/4 12×1×3 Power of Spindle motor (W) 1100 1100 1100 1500 1500 2200 Hydraulic station motor (W) 1500 1500 1500 Working Pressure (Mpa) 3 3 3 Max. runoff ( L/min) 18 18 20 Fuel tank capacity ( L) 80 80 80 Coolant pump (W) 40 40 40 40 40 40 Machine net weight ( Kg) 650 700 750 850 900 1200 Packing gross weight ( Kg) 750 800 850 950 1000 1300 Machine size (M) 1.55×1.06×1.59 1.68×1.14×1.80 1.68×1.14×1.80 1.80×1.40×1.80 1.80×1.40×1.80 1.80×1.40×1.80 Packing size (M) 1.02×1.15×1.87 1.14×1.24×1.96 1.14×1.63×1.96 1.20×1.34×1.96 1.25×1.63×1.89 1.50×1.80×1.98 Notes: Every model can be equipped with dynamical system and digital readout system according to the customer’s demands, DRO resolution is 0.001-0.005mm | |||||
| > Add to cart | ||||||

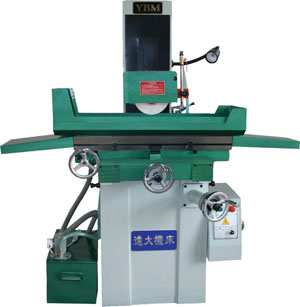

 | Manual surface grinder M820 M820 Specifications and Parameters of Surface Grinders Model M618A M820 MY820 M1022 MY1022 MY1224 Table size (mm) 460×180 480×200 480×200 540×250 540×250 600×300 Max. table travel ( mm) 500×190 530×220 530×220 560×260 560×260 650×310 Max. grinding area ( mm) 500×190 520×220 520×220 540×240 540×240 650×310 Max. distance from table to spindle center (mm) 335 490 490 490 490 510 Table slide-way V-type rail with Steel-ball. Double-V rail with steel-ball Double V-type rail Double-V rail with steel-ball Double V-type rail Double-V rail Feed of Cross Handwheel per revolution (mm) 2．5 2．5 2．5 2．5 2．5 per graduation (mm) 0．02 0．02 0．02 0．02 0．02 0．02 Feed of Vertical handwheel per revolution (mm) 1．25 1．25 1．25 2．5 2．5 2．5 per graduation (mm) 0．01 0．01 0．01 0．01 0．01 0．01 Wheel speed (50HZ) 2850 2850 2850 2850 2850 1450 Wheel size (WA46K5V) 7×1/2×11/4 8×3/4×11/4 8×3/4×11/4 8×3/4×11/4 8×3/4×11/4 12×1×3 Power of Spindle motor (W) 1100 1100 1100 1500 1500 2200 Hydraulic station motor (W) 1500 1500 1500 Working Pressure (Mpa) 3 3 3 Max. runoff ( L/min) 18 18 20 Fuel tank capacity ( L) 80 80 80 Coolant pump (W) 40 40 40 40 40 40 Machine net weight ( Kg) 650 700 750 850 900 1200 Packing gross weight ( Kg) 750 800 850 950 1000 1300 Machine size (M) 1.55×1.06×1.59 1.68×1.14×1.80 1.68×1.14×1.80 1.80×1.40×1.80 1.80×1.40×1.80 1.80×1.40×1.80 Packing size (M) 1.02×1.15×1.87 1.14×1.24×1.96 1.14×1.63×1.96 1.20×1.34×1.96 1.25×1.63×1.89 1.50×1.80×1.98 Notes: Every model can be equipped with dynamical system and digital readout system according to the customer’s demands, DRO resolution is 0.001-0.005mm | |||||
| > Add to cart | ||||||

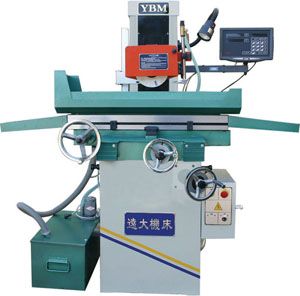

 | Manual surface grinder with readout system MS618A MS618A Specifications and Parameters of Surface Grinders Model M618A M820 MY820 M1022 MY1022 MY1224 Table size (mm) 460×180 480×200 480×200 540×250 540×250 600×300 Max. table travel ( mm) 500×190 530×220 530×220 560×260 560×260 650×310 Max. grinding area ( mm) 500×190 520×220 520×220 540×240 540×240 650×310 Max. distance from table to spindle center (mm) 335 490 490 490 490 510 Table slide-way V-type rail with Steel-ball. Double-V rail with steel-ball Double V-type rail Double-V rail with steel-ball Double V-type rail Double-V rail Feed of Cross Handwheel per revolution (mm) 2．5 2．5 2．5 2．5 2．5 per graduation (mm) 0．02 0．02 0．02 0．02 0．02 0．02 Feed of Vertical handwheel per revolution (mm) 1．25 1．25 1．25 2．5 2．5 2．5 per graduation (mm) 0．01 0．01 0．01 0．01 0．01 0．01 Wheel speed (50HZ) 2850 2850 2850 2850 2850 1450 Wheel size (WA46K5V) 7×1/2×11/4 8×3/4×11/4 8×3/4×11/4 8×3/4×11/4 8×3/4×11/4 12×1×3 Power of Spindle motor (W) 1100 1100 1100 1500 1500 2200 Hydraulic station motor (W) 1500 1500 1500 Working Pressure (Mpa) 3 3 3 Max. runoff ( L/min) 18 18 20 Fuel tank capacity ( L) 80 80 80 Coolant pump (W) 40 40 40 40 40 40 Machine net weight ( Kg) 650 700 750 850 900 1200 Packing gross weight ( Kg) 750 800 850 950 1000 1300v Machine size (M) 1.55×1.06×1.59 1.68×1.14×1.80 1.68×1.14×1.80 1.80×1.40×1.80 1.80×1.40×1.80 1.80×1.40×1.80 Packing size (M) 1.02×1.15×1.87 1.14×1.24×1.96 1.14×1.63×1.96 1.20×1.34×1.96 1.25×1.63×1.89 1.50×1.80×1.98 Notes: Every model can be equipped with dynamical system and digital readout system according to the customer’s demands, DRO resolution is 0.001-0.005mm | |||||
| > Add to cart | ||||||

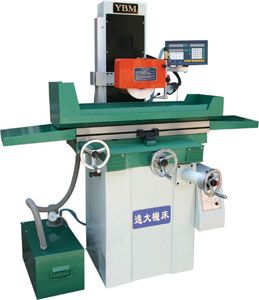

 | Manual surface grinder with readout system MS820 MS820 Specifications and Parameters of Surface Grinders Model M618A M820 MY820 M1022 MY1022 MY1224 Table size (mm) 460×180 480×200 480×200 540×250 540×250 600×300 Max. table travel ( mm) 500×190 530×220 530×220 560×260 560×260 650×310 Max. grinding area ( mm) 500×190 520×220 520×220 540×240 540×240 650×310 Max. distance from table to spindle center (mm) 335 490 490 490 490 510 Table slide-way V-type rail with Steel-ball. Double-V rail with steel-ball Double V-type rail Double-V rail with steel-ball Double V-type rail Double-V rail Feed of Cross Handwheel per revolution (mm) 2．5 2．5 2．5 2．5 2．5 per graduation (mm) 0．02 0．02 0．02 0．02 0．02 0．02 Feed of Vertical handwheel per revolution (mm) 1．25 1．25 1．25 2．5 2．5 2．5 per graduation (mm) 0．01 0．01 0．01 0．01 0．01 0．01 Wheel speed (50HZ) 2850 2850 2850 2850 2850 1450 Wheel size (WA46K5V) 7×1/2×11/4 8×3/4×11/4 8×3/4×11/4 8×3/4×11/4 8×3/4×11/4 12×1×3 Power of Spindle motor (W) 1100 1100 1100 1500 1500 2200 Hydraulic station motor (W) 1500 1500 1500 Working Pressure (Mpa) 3 3 3 Max. runoff ( L/min) 18 18 20 Fuel tank capacity ( L) 80 80 80 Coolant pump (W) 40 40 40 40 40 40 Machine net weight ( Kg) 650 700 750 850 900 1200 Packing gross weight ( Kg) 750 800 850 950 1000 1300 Machine size (M) 1.55×1.06×1.59 1.68×1.14×1.80 1.68×1.14×1.80 1.80×1.40×1.80 1.80×1.40×1.80 1.80×1.40×1.80 Packing size (M) 1.02×1.15×1.87 1.14×1.24×1.96 1.14×1.63×1.96 1.20×1.34×1.96 1.25×1.63×1.89 1.50×1.80×1.98 Notes: Every model can be equipped with dynamical system and digital readout system according to the customer’s demands, DRO resolution is 0.001-0.005mm | |||||
| > Add to cart | ||||||
