CG China | ||||||
About this company : Sichuan Chengdu Chenggong Construction Machinery (Group) Co.,Ltd,abbreviated as CG, is an enterprize which specialize in manufacturing construction machinerys . Founded in 1953 as one of the four earliest state-owned construction machinery manufacturers,CG specializes in wheel loader manufacturing as its core business.Growing up on the basis of cooperations with giants in the world such as CAT and KOBELCO,CG owns many technical,engineering and designing advantages,which enable CG make better machines than competitors in dometic and be entitled as "China's CAT" becuase of outlooking and technical similarities. We focused more on domestic market before,now,it's time for us to put our eyes on wider and farer demands.We expand our product lines to manufacture mini excavator,motor grader and road roller as well as wheel loader.Equipted with imported core parts and components such as engines,bearings and gear boxes etc.,our machines are welcomed by more and more customer worldwide. After development of more than 50 years, CG now has grown up as a large group company,which occupies an areas of 335 acres with 2000 staff including over 300 engineers specializing in research and developments annual production capacity reaches 15,000 units of construction machines as well as relative parts and components is the biggest base of construction machinery industry in west China. China-top-brand CG construction machines are being known and accepted by more and more wheel loader and excavator dealers,including New Holland,which is also a giant in this field.CG machines now enjoy popularity not only in domestic market but also in many other countries and areas such as the USA,Canada, Australia, Russia,Ukraine,Lithunia,Slovak,Greek,UAE,Iran,Tunisia,etc..... Our main lines with unique advantages are Mini Excavator,Wheel Loader,Motor Grader and Road Roller. | ||||||
Contact : Jay June Woo, Sales Manager | ||||||
Headquarters : No.16, Section 3,Renminzhonglu Road, Chengdu, Sichuan, 61003.1, China | ||||||
Phone : +86-28-86692859, Fax : +862886692769 | ||||||
Website : Log on to trade instantly , Email : Log on to trade instantly | ||||||

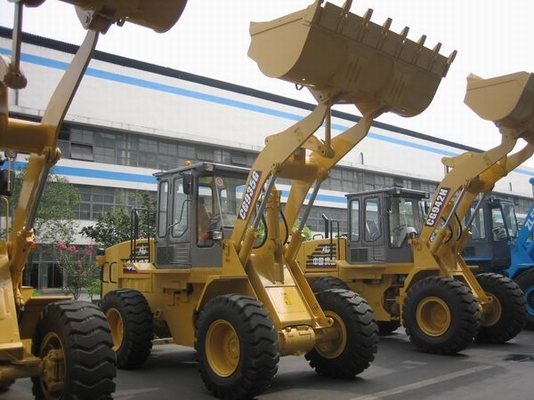

Wheel Loader CG935G Engine Model:Cummins QSB5.9 Rated Power(kw/ps):116/155 Rated Revolution(r/min):2200 Rated Load Weight (t):3.5 Max. Dump Clearance(45¡ãDischarge)(mm):2707 Dump Reach(Max.Dump Clearance)(mm):1062 Top Forward Speed(kw/h):34 Min.Turning radius(mm):5585 Maxaction Force(kn):110 Hydraulic Cycle Time(Total)(s):9.6 Rated Bucket Capacity(CBM):2 Breakout Force(kn):107 Overall Length(mm):7250 Overall Width(mm):2675 Overall Height(mm):3225 Operating Weight(t):11.6 | ||||||
> Add to cart | ||||||

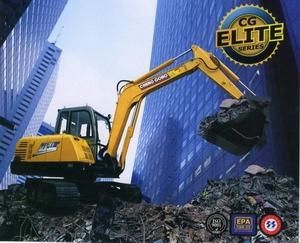

Mini Excavator TE55/TE60 TE60/TE55 Operation Weight:6000kg/ 5500kg Scoop Capacity:0.21CBM/0.19CBM Rated Engine Power:45kw/39kw Rated Engine Speed:2200rpm/2200rpm Max Excavating Strength:41KN Travel Speed:5.0/2.6km/h Gradient:35 Rotation Speed 11r/min Upper Turnplate Total Width:1844mm Afterbody Rotates Radius:1670mm/1650mm Upper Turnplate Ground Clearance:698mm/683mm Next frame Ground Clearance:373mm/365mm Crawling Track Width:400mm/400 Gauge:1520mm Trend:1990mm/1940mm Crawling Track Total Length:2546mmm/2473mm Chasis Width:1920mm Cab Height:2579mm/2567mm Big Arm Height:1930mm/1942mm Total Length:5952mm/5944mm Max Excavating Height£º5789mm/5767mm Max Excavating Radius:6114mm/6086mm Max Dumping Height:4166mm/4140mm Dozing Plate Height:365mm Dozing Plate Lifting Space(Up/Down):349/457mm Fuel Tank Capacity:100L Hydraulic Oil Tank Capacity:90L | ||||||
> Add to cart | ||||||

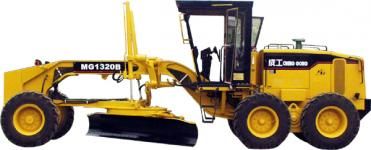

motor grader MG1320B Operating Weight: Front Axle - 4480kg Rear Axle - 11520kg Total Weight-16000 kg Diesel Engine: Shanghai Model - D6114ZG15B Rated Power -156/209kW/hp Rated Revolution-2400r/min Overall Dimensions: Standard - L x W x H - 8870x2600x3430 mm With Optional -L x W x H - 9500x2600x3430 mm Wheel-base: Front Axle to Rear Axle - 6130mm Middle Wheel to Rear Wheel - 1550mm Tread Width - 2150mm Steering System: Max. Front Wheel Steering Angle - 45 Max. Articulated Wheel Steering Angle - 20 Min. Turn Radius - 7700mm Moldboard: Length - 3960mm/13ft Height(Arched Length) - 650mm Max. Tilt Angle - 90 Rotating Angle - 360 Cutting Angle Adjusting Range - 42-73 Max. Lift above Ground - 410mm Max. Digging Depth under Ground - 440mm Max. Shoulder Reach (Left/Right) - 1440/2090mm Bulldozer£¨Optional): Width - 2740mm Height - 920mm Max. Dozing Depth - 205mm Max. Tractive Force - 115 KN Scarifier (Optional) : Scarifying Width - 1250mm Max Dozing Depth - 280mm Number of Teeth Shanks piece - 11 Rear-mounted Ripper (Optional) : ¡¡¡¡ Max. Digging Width - 2000mm Max. Digging Depth - 315mm Number of Shanks piece - 5 Travel Speed Speed 1 2 3 4 5 6 Forward 6.7 11.6 13.8 23.9 30.1 44.2 Reverse 6.7 13.8 30.1 | ||||||
> Add to cart | ||||||
