| CLM Co., Ltd | ||||||
| About this company : Founded in 1980, is an professional manufacturer and exporter of Design/Tooling Making/Molding/Stamping/ Assembly. Our products include 1U rack server, rack cabinet, rail, rackmount RAID server chassis(Intel test approved), cable management, PC case, riser card & backplane, power supply, fan, hub, UPS, and etc. | ||||||
| Contact : Bitow Tsai, Sales Manager | ||||||
| Headquarters : 19, Lane 222, Chung Sun 2nd Rd, Loojou City, Taipei Hsien, Taiwan, Republic of China | ||||||
| Phone : 886-2-22828686, Fax : 886-2-22822843 | ||||||
| Website : Log on to trade instantly , Email : Log on to trade instantly | ||||||

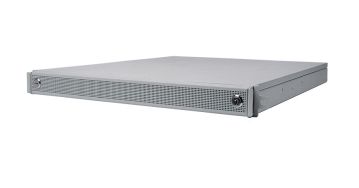

 | 1U Server ISME-01 System Specifications: ATX Single Power Supply : Input Range 90 ~ 264 Vac., Input Current 6.3A max.(per unit); Input Frequency 47 - 63 Hz, Output 300W max.; Fans SANYO Brand, 3pcs 40 x 40 x 28mm(High Rotation)(Two Ball Bearing), Rated Speed : 15500 RPM± 10%; CPU -- Socket 478 for Intel Pentium 4 Processor, FSB 800 / 533 / 400 MHz, Support Hyper-Threading Technology; Chipset -- SiSR 661FX & 964, North Bridge : SiSR 661 FX, South Bridge : SiSR 964; Memory : 2 x 184-pin DDR DIMM socket support max to 2GB, Support DDR 400 / 333 / 266 MHz 2.5V DDR SDRAM; Expansion Slot : 1 x PCI Slot; Storage : Support by SiSR 964, 2 x Ultra DMA 133 / 100 / 66 Devices; LANs : Realtek RTL8201BL 10 / 100 Mbps Fast Ethernet PHY; Inner Construction : 1 x 20-pin ATX Power Supply Connector & 4-pin, 12V Connector, 2 x IDE Connectors, 4 x USB 2.0 header support additional 4 USB Ports, 1 x Front panel switch / LED header, CPU Fanless; 1U Optional Accessory : 1 Set 1U 20" 3 Section Slide Rail, 1 Pc 1U Cable Management; M/B Form Factor : Micro-ATX Size, 244mm * 230mm; Cold Swap Drives Support : For Cold-Swap IDE Hard Drive; Devices : 1 x 5.25" CD-ROM, 2 x 3.25" Hard Disk; Indicators : 3 LEDs for 1 x Disk Drive status LED, 1 x Power LED, 1 x Fan Failure LED; Switches : Power Switch/Reset Switch; Inner Front Panel : 2 x USB Ports, 1 x RJ-45 Serial Port; Rear side I/O : Two PS/2 ports for Mouse and Keyboard, One serial port, One parallel port, Four USB ports, One LAN port (Optional), One VGA port; Riser Card : 1 x 32 Bit PCI 5V; Operating Temperature : -15 ~ 45 degree Celsius Environment Temperature; Material : SECC (Japan-Made); Finish : Textured coating in front body. BLACK : RAL 9011, BEIGE : RAL 7035; Dimensions : (W) 429 x (H) 44 x (D) 450mm/(W) 19" x (H) 1.73" x (D) 18"; Other Optional Solution : A. Server Rack Depth - (W) 600mm x (L) 600 ~ 900mm; B. Cabling Management; Weight : N.W. : ~ 10KGS; G.W. : ~ 12.5KGS | |||||
| > Add to cart | ||||||
| ||||||
|
|
