| Seventeam Electronics Co. Ltd | ||||||
| About this company : Seventeam Electronics has been established since 1986 and is an ISO-9002 certified manufacturer. The capability of technical research and development, the utmost quality control, and the friendly customer service are our essential elements. Our products include PC and IPC switch power supply, and etc, which are protected by OVP, OTP, and OPP circuit design. We offer the competitive price and satifsfactory quality. | ||||||
| Contact : Brain Liu (Managing Director), Kenny Lai (Manager) | ||||||
| Headquarters : Bei An Industrial Park, Huang Jiang, Dong Guan City, Guang Dong Province, China | ||||||
| Phone : 86-769-3621007, 86-769-3621009, Fax : 86-769-3621006 | ||||||
| Email : Log on to trade instantly | ||||||

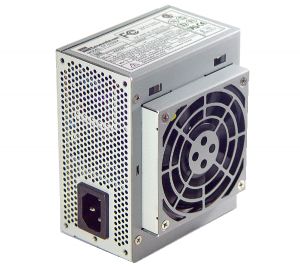

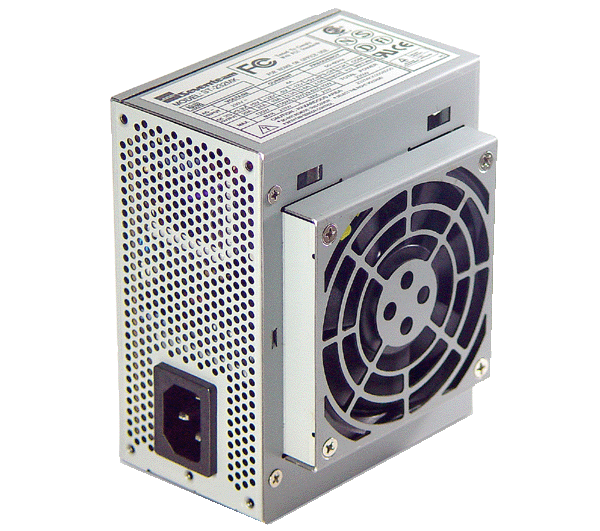

 | MICRO ATX Power Supply ST-250MAD Features : * EFFICIENCY (68 TYPICAL, FULL LOAD CONDITION AT 115/230 VAC INPUT); * POWER GOOD SIGNAL (ON DELAY TIME 100 ~ 1000 ms, OFF DELAY TIME 1ms); * HOLD UP TIME: 16ms AT 25 degree Celsius FULL LOAD CONDITION AT 115/230 VAC INPUT; * OPERATING TEMPERATURE RANGE (0 ~ 50 degree Celsius); * REMOTE ON/OFF CONTROL( THE POWER SUPPLY OUTPUT SHALL BE ENABLED WITH AN ACTIVE-LOW TTL SIGNAL. WHEN TTL SIGNAL IS LOW, THE DC OUTPUTS ARE TO BE ENABLED. WHEN TTL SIGNAL IS HIGH OR OPEN CIRCUITED, THE DC OUTPUTS ARE TO BE DISABLED); * OVER POWER PROTECTION ( AT 115/230 VAC INPUT THE POWER SUPPLY WILL SHUT DOWN ALL DC OUTPUT WITHIN 105 TO 140 OF FULL LOAD); * OVER VOLTAGE PROTECTION ( +5V --> 6.5V, +12V --> 14.5V, +3.3V --> 4.5V); * EMI REQUIREMENT (FCC PART 15 SUB PART J CLASS B AT SYSTEM LOAD, CISPR 22 CLASS B); * SAFETY (CUL, TUV); * DIMENSION (125 D x 100 W x 76.5 H mm); * COOLING: ONE 80mm DC FAN; * ACTIVE POWER FACTOR CORRECTION (EN 61000-3-2: 1995+A1+A2: 1998, CLASS D) Specification : * VOLTAGE (115 VAC ~ 230 VAC); * FULL RANGE(WITH }10 TOLERANCE); * FREQUENCY ( 50 ~60 HZ); * INPUT CURRENT (7.0 A (RMS)); * INRUSH CURRENT: 60 A MAX. | |||||
| > Add to cart | ||||||
| ||||||
|
|
