| | About this company : We are one of the leading manufacturers and distributors of concealed hinges.
We have got a reputation in this field since we are in this business for the last 8 years.
Our spirit is to serve you with the best quality, price and service. Please give us an opportunity to serve you with our various ranges of products. We will do something you want.
Please feel and enjoy your satisfaction in the sea of the articles with fantastical and practical design.
We will open ears for any requirements from you. Please contact us. |
|
| | Contact : gary hawk, Oversea department | |
| | Headquarters : Haidishi Industry Area,xinming,leli, ShundeFoshan, Guangdong, 528300, China |
| | Phone : +86-757-25531000, Fax : +86-757-25533002 | |
| | Website : Log on to trade instantly , Email : Log on to trade instantly |
|

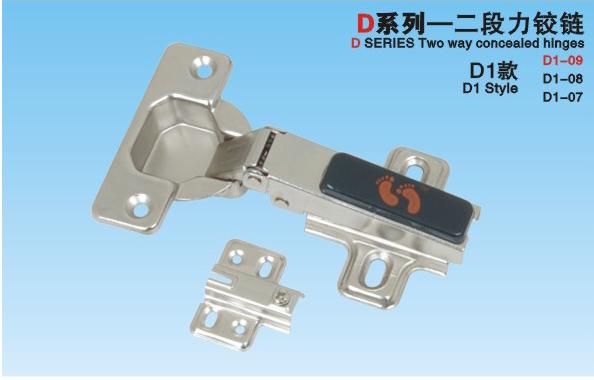

| |  | | concealed hinge D1
Product Name: Concealed Hinges
Model Number: D1
Place of Origin: China
Features:
1) Slide-on hinge, two-way
2) Material: cold-rolled iron, nickel-plated
3) Cup diameter: 35mm. Cup C.C 48mm
4) Mounting plate in different height (H=0/2/4) and different design (two holes / four holes)
5) Opening angle: 105 degrees
6) Optional Euro screw, dowel and wooden screw available
7) Item No:D1-09 (insert),D1-08(half-overlay),D1-07 (full-overlay)
8) Depth of hinge cup: 11.3mm
9) Range of doors thickness: 14 - 24mm
Inner packing: 2pcs/polybag or as per customer's requirements
Outer packing: 200polybag/ctn or as per customer's requirements
For more details, please visit our listings or log in to contact us.
|
