| Year-Chance Machinery Co., Ltd. | ||||||
| About this company : Year-Chance Co., established in 1995 with ISO 9001 and CE approved, specilizes in high speed and high pressure, Plastic Injection Molding Machine. | ||||||
| Contact : Angela Lu, Export Manager | ||||||
| Headquarters : 7, Ming Dung Rd, Yung Kang City, Tainan Hsien, 710, Taiwan, Republic of China | ||||||
| Phone : 886-6-2432155, Fax : 886-6-2437905 | ||||||
| Website : Log on to trade instantly , Email : Log on to trade instantly | ||||||

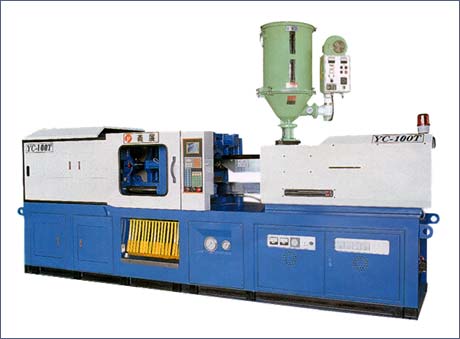

.jpg) | Plastic Injection Molding Machine YC-50T~YC-150T Year Chance's injection molding machine scores high in capacity, efficiency and precision. All models come with high-speed stable injection system and precision molding is achieved through accurate clamping with high rigidity and precision. The hydraulic system uses special low noise pumps for quiet operation. It also helps to cut energy and level costs since the precise automatic locating device enables easy mold replacement and an efficient multi-stage pump is available for high capacity machines of 280 tons and over. YC-50T : Screw Diameter (22, 25, 28mm); Shot Size (45.6, 58.9, 73.9 cm^3); Shot Weight (1.4, 1.9, 2.4 oz); Plasticizing Capability (18, 24, 28 kg/hr); 60Hz Injection Rate (60, 78, 97 cm^3/sec); Injection Pressure (2328, 1803, 1437 kg/cm^2); 60Hz Screw Speed (0~300 rpm); Clamping Force (50 ton); Clamping Stroke (270 mm); Mold Height (100~320 mm); Platen Size (460Vx460H mm); Distance b/t Tie-Bars (310Vx310H mm); Ejector Force (2.7 ton), Ejector Stroke (75 mm); Electric Motor (15 hp); Heat Zone (3 set); Heater Capacity (3.47 kw); Oil Tank Capacity (225 l); Machine Size (3.38Lx1.34Wx1.66H m); Machine Net Weight (2.9 ton); Machine Gross Weight (3.1 ton) | |||||
