Dahching Electric Industrial Co., Ltd. | ||||||
About this company : Founded in 1979, Dahching has mainly manufactured standard spot welding machines. In the 80s, we had extended factory production lines and started in automizing production in the 90s. Dahching Electric has started to export to East Asia, China, South Africa, North America, South America, and the Middle East. Our notable products are such as spot welder, protection welder, seam welder for shock absorber, automatic oil filter welder, bolt and cap welder, rechargeable spot welder etc. | ||||||
Contact : Lily Wang, Export Department | ||||||
Headquarters : 311-2 Kangkou Village, Anting Hsiang, Tainan Hsien, 745, Taiwan, Republic of China | ||||||
Phone : 886-6-5932646, Fax : 886-6-5935555 | ||||||
Website : Log on to trade instantly , Email : Log on to trade instantly | ||||||

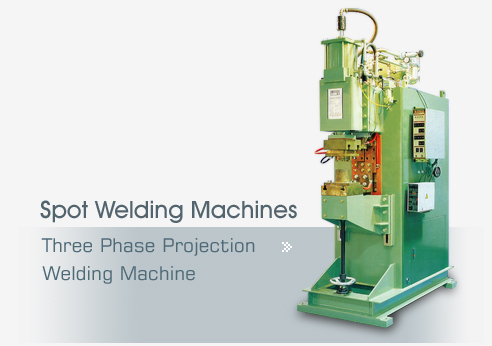

Spot Welder DS-50PJ This type of model, three phase projection welding machine is DC output and possible for three phase primary current flow evenly at once. Increased current power, secondary output current flow, yields a higher output electric current which resulted in stable current for welding.. SPECIFICATIONS : Capacity - 50 KVA; Input voltage - 220 V; Frequency - 60 HZ; Short circuti current(max.) - 20,000 A; Welding power (max.) - 200 KVA; Duty cycle 8.7 %; Throat dimensions Interval x depth - 200 x 350; Pressure force(max.) - 1000 KG/cm^2; Electrode Stroke - 20~80 m/m; Tip size Disc size - 150 m/m; Cooling water 8 l/m; Weight 630 KG. | ||||||
> Add to cart | ||||||
